SSAB’s RDc casing tubes save up to 90% installation time
26 februari 2016 8:00 CET 6 min läsning
SSAB ‘s RDc casing tubes are intended for various casing tube applications installed by drilling and where a reliable and, above all, cost-effective splicing technique is required. Use of a threaded splice can save up to 90% of time at the installation stage compared to a traditional welded splice. Each splice takes around just 1-2 minutes.

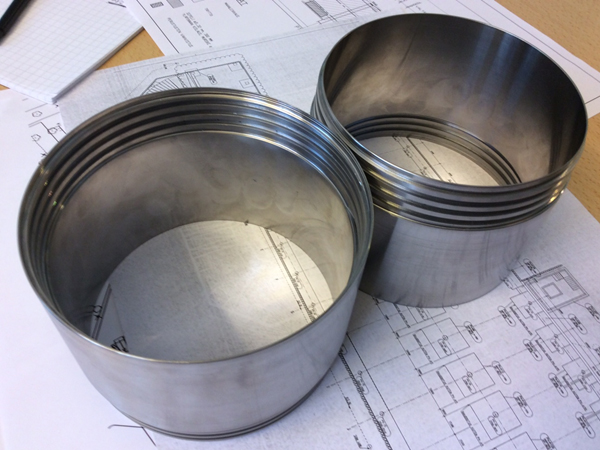

RDc casing tubes are delivered in lengths of three-meters with both ends threaded. The photo shows a threaded pair.
SSAB’s RDc casing tubes, with internal weld burr removed, are ideal for the use of drilling contractors. Applications include the drilling of artesian wells, thermal wells, anchors and horizontal drilling solutions (drilled casings for cable and pipelines under roads, railways etc.). The product lends itself to use both in single-family homes and large industrial projects.
Advantages especially when drilling through thick overburden
The new splicing technique significantly speeds up working and thus improves productivity. The end customer benefits from savings in time. Since the new splicing technique makes installation faster, there is less inconvenience to persons living and working in the vicinity of the construction site.
Highly pre-fabricated elements simplify working. Use of threaded RDc splices makes it easier to ensure the consistent quality of both the splicing and material. Use of threaded splices also reduces friction. Another benefit is the linear straightness of the tubes when spliced to each other.
Working conditions at job site improve since there is no need to use welding equipment, cables, etc. Since it is not necessary to weld the splices in job site conditions, any welding related errors are also eliminated.
Each splice takes around just 1-2 minutes.
SSAB developed the product in response to customer needs
RDc casing tubes are made in Finland from SSAB’s own high-quality steel. The steelgrade used in the tubes is excellent for conditions in the Nordic region.
”Thanks to development driven by customer wishes, SSAB is now able to offer an advanced alternative to welded splices. No welding at all is required when using RDc casing tubes since the tubes are joined by a threaded splice,” explains sales manager Oskari Sivula at SSAB.
“SSAB launched RDc casing tubes in May 2015. To date, 83 meters is the greatest depth to which they have been drilled,” says sales manager Oskari Sivula at SSAB.
RDc casing tubes are delivered as three-meter elements with both ends threaded. The tubes have been made from SSAB’s longitudinally welded S420MH steel.
Table image
Good customer experiences from using SSAB’s new RDc casing tubes
Many customers have already used SSAB’s RDc casing tubes and have reported positive experiences.
Tom Allen Oy, a supplier of ground-source heat systems, is a founding member of Suomen Kaivonporausurakoitsijat ry – Poratek, an association of well drilling contractors in Finland, and is actively involved in the development of thermal well technology.
“We are convinced of the reliability and fast installability of the product and have switched over completely to using RDc casing tubes,” says Jonas Johansson at Tom Allen Oy.
KMH-Yhtiöt Oy carries out thermal and water well boreholes for ground-source-heat systems in northern Finland.
“We use RDc casing tubes because they save time,” says Mika Huttunen at KMH-Yhtiöt Oy.
Talman Energiaporaus Oy makes thermal and artesian wells in the Helsinki Metropolitan Area and southern Finland.
“Drilling RDc casing tubes is very quick. Their threaded splices speed up work since all you have to do is rotate them into place and that’s it,” says Esko “Tumppi” Tuomala at Talman Energiaporaus Oy.

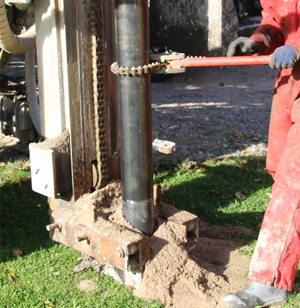

A light chain spanner, for example, can be used to tighten threaded splices.
SSAB’s extensive range of infrastructure products consists of steel pipe piles and retaining walls for building foundations and harbor structures. The company also has a range of mains water pipes and guard rail systems. SSAB is a Nordic and US-based steel company. SSAB offers value-added products and services developed in close collaboration with customers to create a stronger, lighter and more sustainable world.
