Customer case
Lift your payload
May 17, 2018
5 min read
Case details
Product
Country
Company
Industry
Lifting

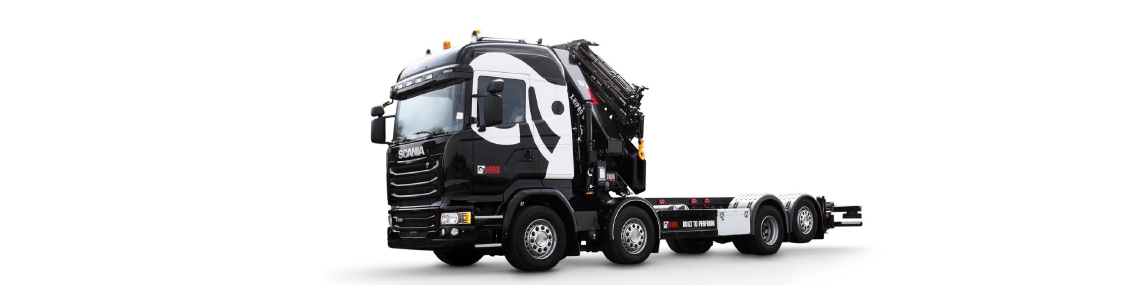

In this scenario 1,125 kg of Strenx® 700 high strength steel replaces 1,500 kg of 500 MPa steel in a loader crane. In addition 1,275 kg of 500 MPa steel replaces 1,500 kg of355 MPa steel in the truck chassis. This means a weight reduction, for the upgraded parts, of 25% in the crane and 15% in the truck. In total a weight reduction of 600 kg is achieved, which increased the load capacity, resulting in higher fuel efficiency and transport efficiency.
SSAB EcoUpgraded
Together with our customers, SSAB continually upgrades steel and equipment designs. SSAB EcoUpgraded saves CO2 both in steel production and during the full lifetime of the machine.
From the CO2 payback time and onwards, every extra hour brings additional savings.

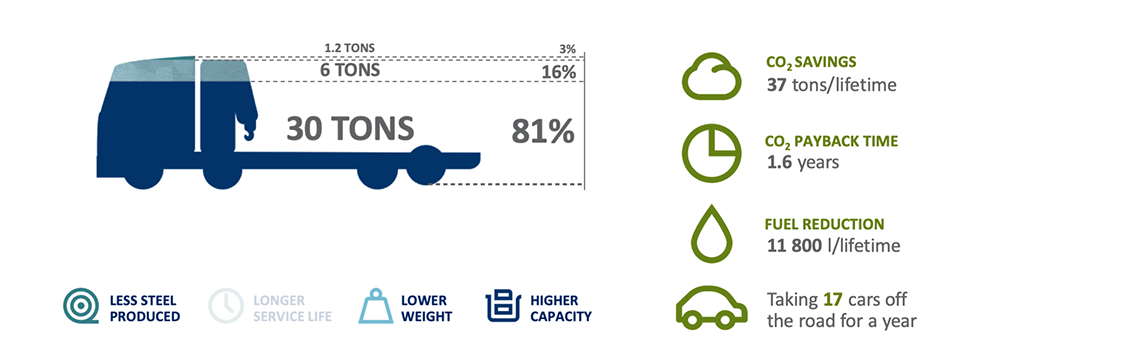

Savings on CO₂
| Calculation data | |
| Fuel consumption, fully loaded | 39 litres/km |
| Fuel consumption, unladen | 31 litres/km |
| Machine usage per year | 100,000 km/year |
| Distance with maximum load | 50% |
| Service lifetime | 12 years |
| Maximum payload (before upgrading) | 13 800 kg |
| Gross weight (fully loaded) | 39 000 kg |
| Weight of original parts | 3 000 kg |
| Weight of upgraded parts | 2 400 kg |
