The re-engineering of wear parts demands the upmost precision to guarantee compatibility. It also requires careful consideration of a part’s operating conditions and wear exposure. Only then can we engineer replacement wear components that have significantly longer service lives.
We believe the best way to navigate the challenges of re-engineering is to have one single contact for the entire wear parts upgrade process. The same person that visits your site, and sees the part’s working conditions, also does the measuring, the Solidworks® drawings, and the estimates.
That same mechanical engineer reviews, along with our production manager, the fabrication plan and processes, and assures that the final implementation of the upgrade meets all of your requirements. We have found this “single-person responsibility” method to deliver the best results on complex, detail-oriented upgrades – and our customers agree.
Our on-site analysis of current wear challenges of a mining chute.

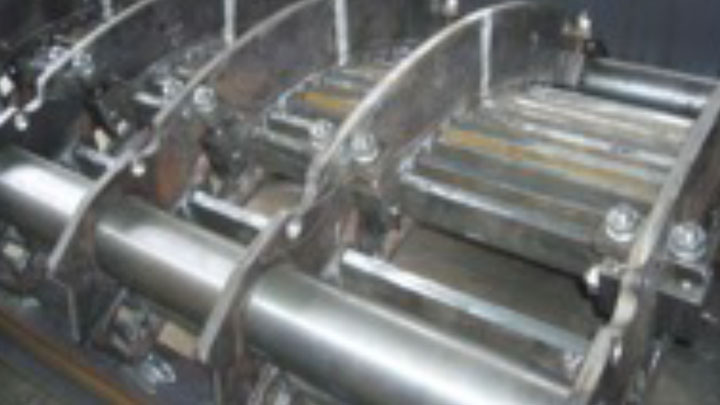

Re-engineered vibrating screen and grizzly made in Strenx 700® and Hardox® 500 for stone crusher.

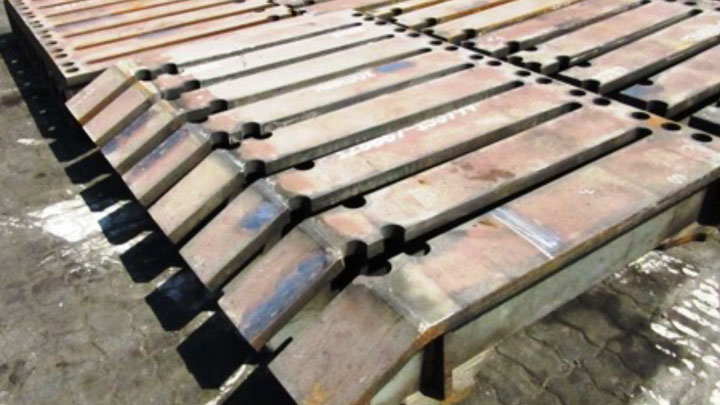

Re-engineered grizzly basket segments and bars made using Hardox® 450 and Hardox® 500 wear plate.

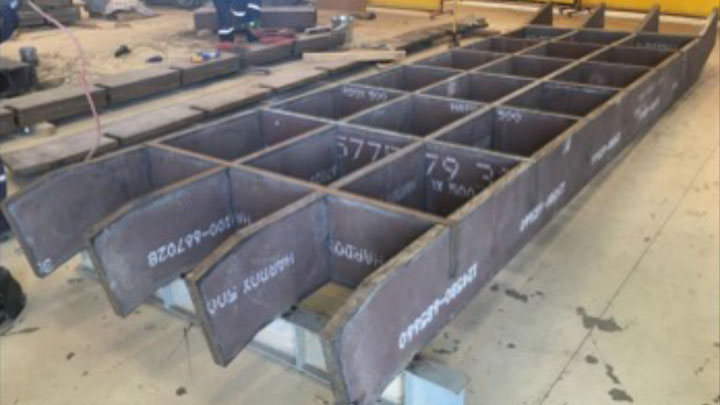

Static grizzly made from Hardox® 500 wear plate, 50mm.

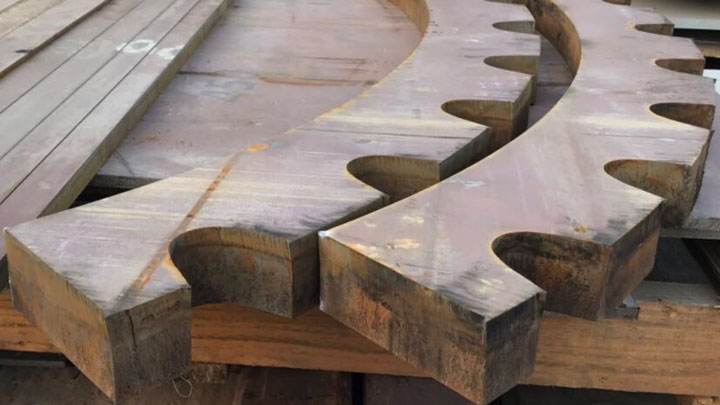

Re-engineered sprocket made in Hardox® 500 for rotary screen at trap rock (basalt, peridotite, diabase, gabbro) refining operation. Our redesign included doubling the pitch per the chain size for much stronger teeth and designing the sprocket in four segments, reducing material and machining costs while making installation easier. The new Hardox® 500 sprocket has three times the service life of the old S355 sprocket, with the same 50mm thickness.
Part of the re-engineering of an entire mining chute, featuring a Hardox® 500 shell with Hardox® 600 liners.
OEMs’ interests and considerations can be widespread: they are, understandably, trying to make parts that can work over a variety of conditions – even, in some cases, across different industries.
By comparison, our Hardox® Wearparts Center UAE is completely focused on greatly extending the service life of your wear part, under its specific working conditions, for your material’s (e.g., mineral’s) distinct wear properties. We also have deep resources, ranging from the steel experts at SSAB’s Knowledge Service Center to our international network of Hardox® Wearparts Centers – who share their application know-how as they address the world’s most challenging wear situations.
