Calculating wear for tipper bodies

Wear comes in different forms, and each has a different impact on the service life of your tipper body. The most common wear types are sliding wear and impact wear. Each type of rock is composed of a unique set of minerals which contribute to the specific type of abrasive wear damage.

When hard, abrasive rocks and minerals slide over the plate during unloading, this sliding wear mechanism causes material loss and deformation in the body.

Wear of steel can be described as three main categories; adhesion, abrasive wear and surface fatigue. For tipper bodies, sliding wear and abrasive impact wear dominates.

When the tipper is being loaded, the body is subjected to impact wear. Only a few large rocks will hit the tipper floor and cause impact wear; the remaining rocks will hit the loaded rocks and not directly the floor. This means that the majority of the wear in a tipper comes from sliding wear, which occurs when unloading the tipper.

Depending on the hardness of the plate relative to the hardness of the abrasive materials loaded, such as aggregate, rocks, metal scrap, etc., relative wear can be calculated using the Hardox® WearCalc software. The Hardox® WearCalc app is a powerful prediction tool that calculates wear and helps you optimize your choice of wear steel. It allows you to predict relative wear life and compare different wear solutions.

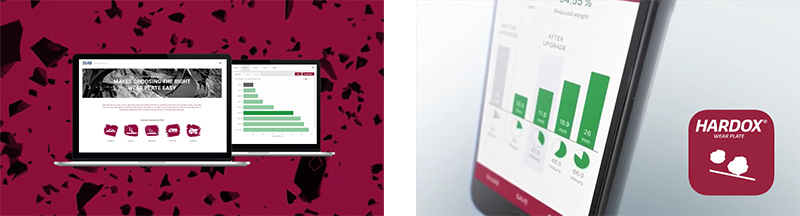

Hardox® WearCalc desktop app (left) and Hardox® WearCalc mobile app (right).

Wear map of tipper bodies

Wear will be most apparent in the tail, the area where most of the rocks slide over. Focusing only on wear, we can say that a harder plate always performs better than a softer one.

Wear map of a tipper body showing right side, bottom plate and left side (from top).

Sliding wear relative to steel hardness

There are two basic mechanisms during sliding wear that take place when a load is discharged – cutting wear and plowing wear. Ideally we will always try to stay in the plowing zone as much as possible, since this will cause the least amount of wear. As a general approximation, the transition between severe cutting wear and slower plowing wear takes place when the abrasive material is less than 1.8–2.1 times harder than the steel’s hardness.

For granite, this transition to slow wear starts at a steel hardness of about 340 HBW as shown in the graph below, and then drops rapidly as the hardness of the steel increases.

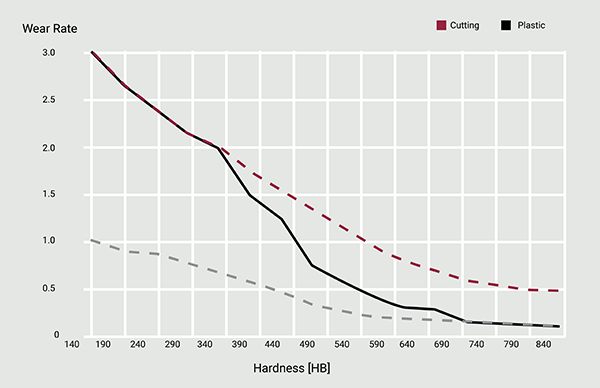

The graph shows the sliding wear rate for granite. Because of the way the steel interacts with the minerals in granite, the transitions will occur at different steps. The top red dotted line describes the cutting mechanism and the bottom gray dotted line describes the plowing curve. The solid black line indicates the wear rate and transitions from minerals interacting with the steel.

Sliding wear rate showing the cutting mechanism (red dotted line), the plowing mechanism (gray dotted line) and the wear rate (black solid line). The result for specific abrasive material and steel grade combinations can be calculated with Hardox® WearCalc.
