Based on RD® piles (RD220–RD1200) and installed by drilling, RD® pile walls are suitable for retaining wall structures in difficult ground conditions. The RD® pile wall works extremely well in retaining wall structures that are under not only horizontal loads but also vertical loads.
Thanks to SSAB’s high-grade steel, our RD® pile walls have excellent bending stiffness and resistance.
For more detailed information see SSAB’s RD® Pile wall design and installation manual.
Applications:
- Retaining wall structures
- Building foundations
- Wharves, piers and quay walls
- Road and railway structures
- Bridges
- Earth dams
RD® pile wall structure

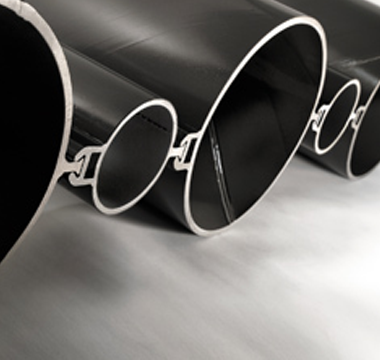

The RD® pile wall is a combination of SSAB's RD large diameter piles and special connector.
RD® piles are interlocked to each other's by welded connectors, creating a continuous pipe pile retaining wall against horizontal and vertical loads. The RD® pile wall is installed with an oversized ring bits instead of a normal ring bits. The RD® pile wall is always installed by percussion drilling methods, using a DTH hammer. The drilling method is concentric.
RD® pile pipes
Pile pipes used in RD® pile walls are SSAB’s drilled RD220 – RD1200 piles. RD® drilled piles are special piles, installed by drilling in difficult ground and environmental conditions. The RD400 - RD1200 drilled piles are based on spiral welded steel pipe. The standard steel grade of RD400 – RD1200 piles is S355J2H, but grades S440J2H and S550J2H are also used. Pile pipes for the RD® pile wall are spliced by welding.
Connectors
In the RD® pile wall the pipe piles are interlocked to each other's by connectors. Adjacent piles are always interlocked using a pair of a narrow and a wide connectors. The connector type specially developed for the RD® pile wall is the SSAB RM/RF connector.
SSAB’s RM/RF connector and the injection channel integrated in it ensure the water tightness of the bottom of the RD® pile wall and its rigid contact with rock without separate injection pipes.

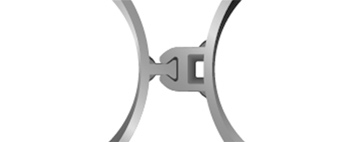

The SSAB RM/RF connectors (in Figure) can be used with pile sizes RD220 to RD1200.
Availability
Standard pile sizes used in RD® pile walls. For project specific dimensions, please contact our sales.
Standard piles and availability of steel grades of RD® pile wall
| 10 | 12.5 | 14.2 | 16 | 18 | 20 | 22 | 23 | |
| RD220 | # | # | ||||||
| RD270 | X | X |
|
|
||||
| RD320 | X | X |
|
|
||||
| RD400 | X | X |
|
|
|
|||
| RD500 | X | X | X | * |
|
|||
| RD600 | X | X | X | X |
O |
|
||
|
RD700 |
X | X | X | X | X | O | ||
| RD800 | X | X | X | X | X | O | * | |
| RD900 | X | X | X | X | X | O | * | |
| RD1000 | X | X | X | X | X | O | * | * |
| RD1200 | X | X | X | X | X | O | * | * |
10
12.5
14.2
16
18
20
22
23
Expand
Collapse
RD220
#
#
Expand
Collapse
RD270
X
X
Expand
Collapse
RD320
X
X
Expand
Collapse
RD400
X
X
Expand
Collapse
RD500
X
X
X
*
Expand
Collapse
RD600
X
X
X
X
O
Expand
Collapse
RD700
X
X
X
X
X
O
Expand
Collapse
RD800
X
X
X
X
X
O
*
Expand
Collapse
RD900
X
X
X
X
X
O
*
Expand
Collapse
RD1000
X
X
X
X
X
O
*
*
Expand
Collapse
RD1200
X
X
X
X
X
O
*
*
Expand
Collapse
# = Steel grades S440J2H and S550J2H X = Steel grades S355J2H, S440J2H and S550J2H O = Steel grades S355J2H and S440J2H
*) Please contact our sales for availability
*) Please contact our sales for availability
Steel grades
Standard steel grades of SSAB’s retaining walls. Against special order, the piles may also be delivered in MH steel grades according to standard EN 10219.
| Chemical composition, max. | Mechanical properties | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
||
|
|
CEV max. [%] | C [%] |
Mn [%] |
P [%] | S [%] | fymin [MPa] | fu [MPa] |
A5 min [%] |
T [°C] |
KV min [J] |
| S355J2H |
0.45 |
0.22 |
1.6 |
0.03 |
0.03 |
355 | 470-630 | 20 | -20 | 27 |
| S440J2H |
0.45 |
0.16 |
1.6 |
0.02 |
0.02 |
440 | 490-630 | 17 | -20 | 27 |
|
S550J2H |
0.47 |
0.12 |
1.9 |
0.02 |
0.02 |
550 | 605-760 | 14 | -20 | 27 |
Chemical composition, max.
Chemical composition, max.
Chemical composition, max.
Chemical composition, max.
Mechanical properties
Mechanical properties
Mechanical properties
Mechanical properties
Expand
Collapse
CEV max. [%]
Chemical composition, max.
C [%]
Chemical composition, max.
Mn [%]
Chemical composition, max.
P [%]
Chemical composition, max.
S [%]
Mechanical properties
fymin [MPa]
Mechanical properties
fu [MPa]
Mechanical properties
A5 min [%]
Mechanical properties
T [°C]
Mechanical properties
KV min [J]
Expand
Collapse
S355J2H
0.45
Chemical composition, max.
0.22
Chemical composition, max.
1.6
Chemical composition, max.
0.03
Chemical composition, max.
0.03
Mechanical properties
355
Mechanical properties
470-630
Mechanical properties
20
Mechanical properties
-20
Mechanical properties
27
Expand
Collapse
S440J2H
0.45
Chemical composition, max.
0.16
Chemical composition, max.
1.6
Chemical composition, max.
0.02
Chemical composition, max.
0.02
Mechanical properties
440
Mechanical properties
490-630
Mechanical properties
17
Mechanical properties
-20
Mechanical properties
27
Expand
Collapse
S550J2H
0.47
Chemical composition, max.
0.12
Chemical composition, max.
1.9
Chemical composition, max.
0.02
Chemical composition, max.
0.02
Mechanical properties
550
Mechanical properties
605-760
Mechanical properties
14
Mechanical properties
-20
Mechanical properties
27
Expand
Collapse
Order & delivery
To order RD® pile wall and Combi wall, please contact our sales.
SSAB applies the General Conditions, ALBIF 2000, for deliveries with the addition that the parties will comply with applicable legislative and regulatory requirements and refrain from participating in any corrupt business practices.
The technical terms of delivery for steel piles manufactured by SSAB are in accordance with the EN 10219-1 and/or ETA 12/0526. The dimensions and tolerances are as defined in EN 10219-2 and/or in ETA 12/0526. Engineering work of piles for pile walls is in accordance with standard EN 12063.
Steel piles are delivered with bundle tags and SSAB's pile markings to enable full traceability and identification.
Type 3.1 material certificate will be provided according to the standard EN 10204.
Design tools
Software for fast and easy design
PileCalc is a design program for SSAB's steel piles. Eurocodes as well as National codes and instructions are applied in the end-bearing pile design.
PileWallCalc design tool enables easy calculation of cross section properties and bending resistances of the pile walls. The program calculates the bending resistances and normal force resistances of RD® pile wall, Combi wall and Zig-Zag Combi wall.
Environmental responsibility and sustainability
SSAB develops new products and services in order to improve our customers’ performance in sustainability and overall efficiency.
Life cycle assessment data for SSAB’s products are available in the form of Environmental product declarations (EPDs). Manufacturing chain from raw material to finished product is carefully managed.
SSAB has introduced CE marking for infrastructure products. Declarations of Performance (DoP) indicate the technical characteristics of CE-marked products.
RD® pile wall - Proven retaining wall solution for difficult ground conditions in urban environments
Fast and reliable installation and excellent water tightness has resulted in successful customer projects.
RD® pile wall is specially designed for challenging conditions, for instance, for faster implementation of retaining walls and other foundation structures.
You can always find the correct pile size and steel grade from SSAB’s extensive RD® pile and steel grade range, which allows you to implement a retaining wall or foundation structure with the best overall economy for all soil conditions and loading situations.
