The advantages of cold-rolled open profiles over hot-rolled beams

When you need stronger yet lighter steel profiles with tight tolerances, dimensional accuracy, straightness, cold-rolled open profiles from SSAB can make a better option than hot-rolled profiles. Here’s why.

Exact dimensions and straightness

Cold-formed profiles are made from coils that have tight thickness tolerances. Cold forming is a continuous process that results in tolerances suitable for applications requiring technical precision. Tolerances in all steps of the process are monitored regularly. Steel profiles produced through cold-rolling stay true to the dimensions you require and are straighter, with well-defined edges and corners. In the best case, you eliminate the need for straightening.

The dimensions of our cold-formed open sections are consistent from batch to batch, minimizing the need for adjustments in further processing.

Stronger yet lighter profiles, many grades to choose from

A cold-formed open section is generally lighter than a hot-rolled profile yet offers the equivalent bending strength. So, you can reduce the steel thickness and make your final product lighter and stronger with an optimized shape. This can also lower the environmental footprint of your structure.

Your choice of material is limited only by the choice of steels available in coils. You can increase the yield strength to 900 MPa or even choose weathering steels for your structure. By choosing the best steel grade quality, you can make a huge impact on the weight of the entire structure.

Improved surface qualities

Our cold-rolled open profiles have a smooth, finished surface quality that speeds up surface treatment. SSAB’s steels are pure micro-alloyed and designed to withstand extreme conditions. They also have excellent machining and welding properties.

Get the right shape, size and strength

When using cold-formed open sections, you can choose the shape with the best strength and dimensions that best fit your application. The shape can make all the difference in improving the function and usability of your product. SSAB can support you as early as in the design phase, and with our wide range of steels you’ll get the versatility you need to select the best open steel profiles, whether you’re looking for high-strength or weathering steels.

Cut waste on your next project

Reducing waste and splice welding makes sense in steel fabrication. This can be easily done by ordering the necessary lengths. By choosing a product that is optimized for your application in the right length, possibly perforated, you get a finished component in your hands – no need for time-consuming further processing.

Photographer: Nagy Mihály / magyarepitok.hu

Customer cases

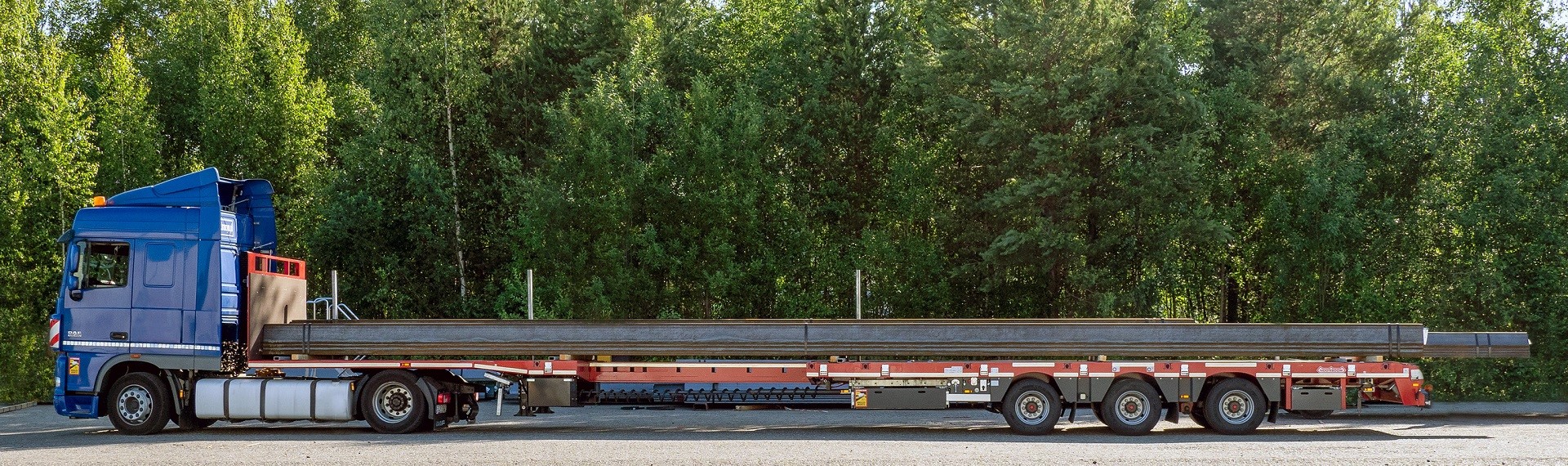

18 m long open profiles on a truck

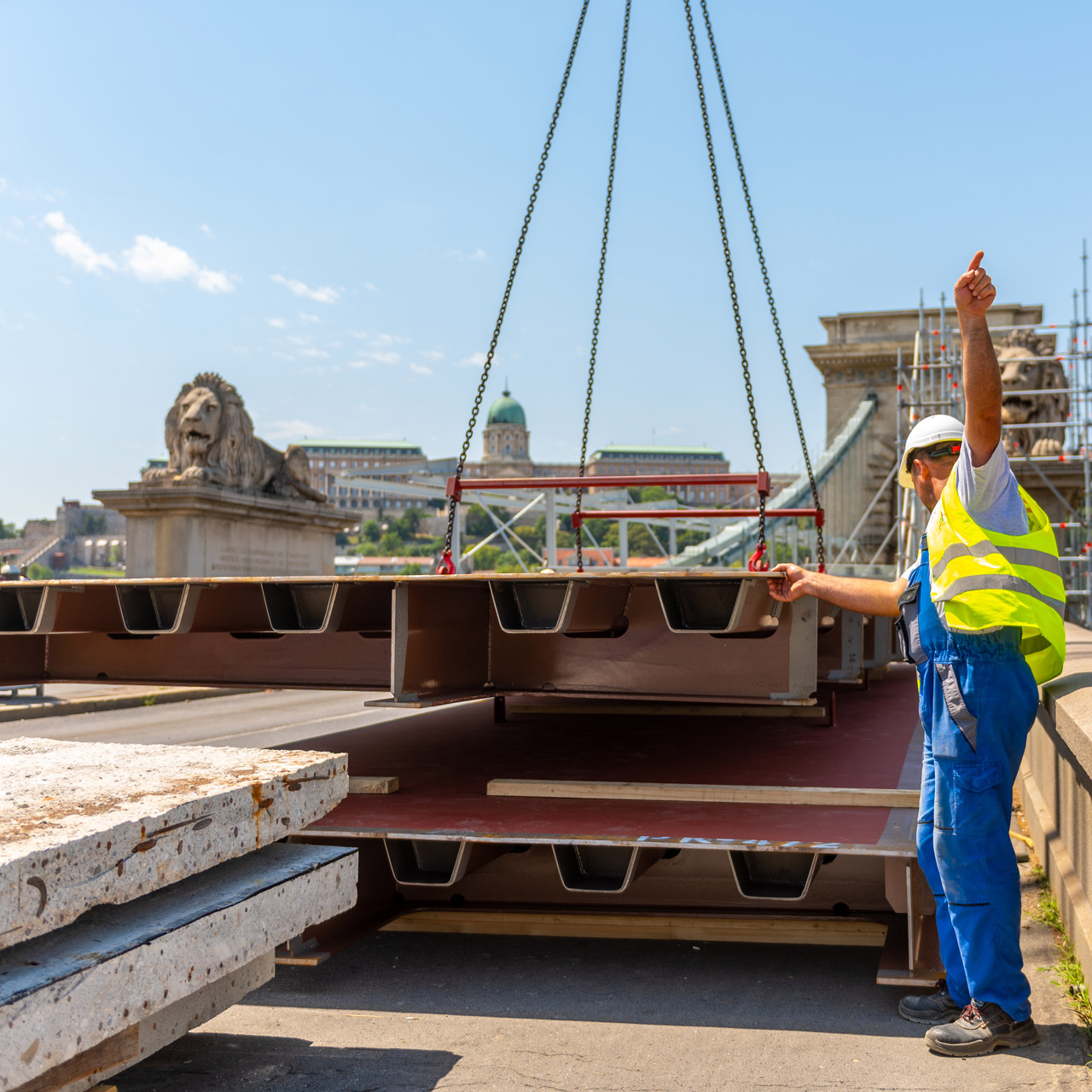

Trapezoidal sections improve economy of the long span bridge superstructure

SSAB has been involved in the development and implementation of steel bridge structures for many years. Our solutions for both superstructure and substructure steel bridge components make us competitive in this construction sector. SSAB plates, pipes, sections and profiles open the way for sustainable and cost-effective bridge construction, which means savings in overall life cycle costs. The two bridge projects in Hungary are a perfect example of how to implement VU sections into a steel bridge superstructure.

Read more
cold-formed open sections , Helaform

Helaform updated sliding door section to reduce size while maintaining load bearing

SSAB Toijala mill has a long history of delivering cold-formed open sections to Helaform Oy, a Finnish company that designs and manufactures sliding door hardware. Helaform is an internationally well-known brand, with products being supplied to retail and industrial outlets, commercial and agricultural sectors through its outstanding worldwide network of distributors and agents. Helaform was founded in 1983, since when it has relied on the wide range and quality of open sections manufactured by SSAB. Helaform has more than 450 retailers and has delivered over 1,000,000 meters of sliding door tracks.

Read more
R-taso man i  R-taso walkway

R-taso delivers modular industrial walkways that have low carbon footprint

SSAB Toijala mill has a long history of delivering cold-formed open sections to R-taso. R-taso is one of Finland’s leading manufacturers of industrial platforms, and it is known for its high-quality products. Both SSAB and R-taso have the same ambitious goal of reducing CO2 gas emissions as much as possible. This is reflected in the latest improvements and investments. Both R-taso and SSAB believe that sustainability is the foundation of a successful business.
