Customer case
Immediate results
October 30, 2018
5 min read
Case details
Product
Country
Company
Industry
Trailers and body builders

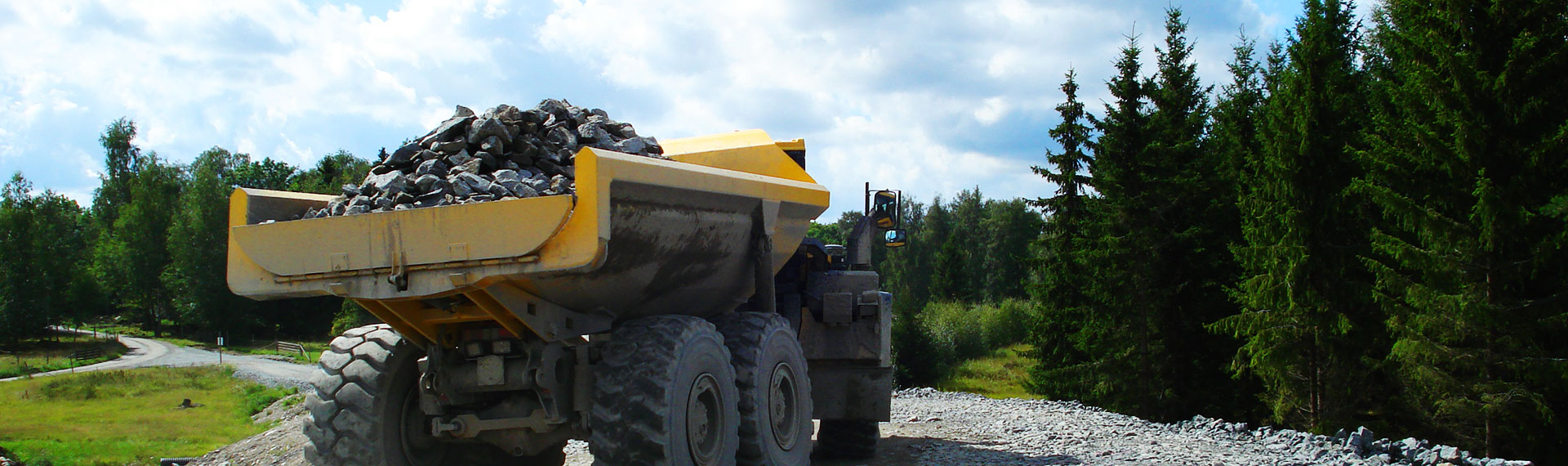

This new body design is made of Hardox® 450 and 500, increasing the dumper’s load capacity by about 11% compared to the original design. It is partly due to the redesign and upgrading of wear liners, saving approximately 80% of their weight.
SSAB EcoUpgraded
Together with our customers, SSAB continually upgrades steel and equipment designs. SSAB EcoUpgraded saves CO2 both in steel production and during the full lifetime of the machine.
From the CO2 payback time and onwards, every extra hour brings additional savings.

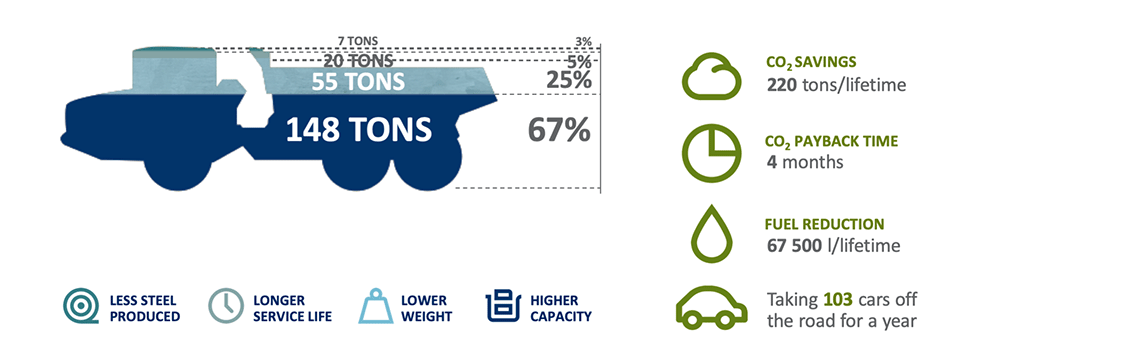

Savings on CO₂
| Calculation data | |
| Fuel consumption, fully loaded | 40 litres/hour |
| Fuel consumption, without load | 20 litres/hour |
| Machine usage per year | 2 000 hours/year |
| Distance with maximum load | 60 % |
| Service lifetime | 10 years |
| Maximum payload (before upgrading) | 32 380 kg |
| Gross weight (fully loaded) | 63 440 kg |
| Weight of original parts | 7 200 kg |
| Weight of upgraded parts | 3 500 kg |
| Wear resistance steel saved during lifetime | 5 000 kg |
