Caso de cliente

Los remolques ligeros de Dionbilt ofrecen un alto rendimiento gracias al nuevo diseño con Strenx®

08 de septiembre, 2021 Lectura de 6 min

Chasis de un remolque largo y ligero fabricado con Strenx® 100 sobre terreno nevado

Detalle del caso

País Estados Unidos
Empresa Dionbilt Manufacturing, LLC
Sector Fabricantes de trailers y carrocerías
Programa de marca My Inner Strenx®

Dionbilt Trailers de Washington, Estados Unidos, desarrolló una fórmula ganadora para fabricar remolques ligeros con el acero estructural de alta resistencia Strenx® 100. La actualización al acero T-1 facilitó la producción de remolques más ligeros y atractivos.

Strenx® 100 has a minimum yield strength of 100 ksi (689 MPa) and meets the requirements of ASTM A514 Grade S. Strenx® 100 allowed Dionbilt to develop its trailer design even further, using its own CAD resources to optimize performance. The company was able to reduce the thickness of the trailer beams and other trailer parts by 10-15%. This translates to a weight reduction of about 200 kg (400 lb), from 3,600 kg (7,900 lb) to 3,400 kg (7,500 lb). Dionbilt produces 100 of its 3,400 kg (7,500 lb) 4-axle trailers per year.

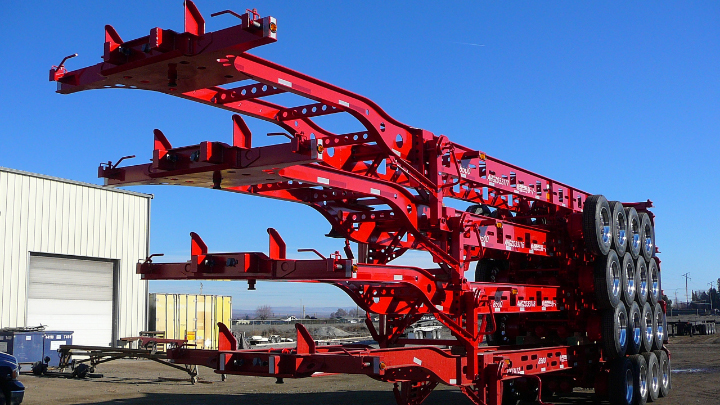

Four trailer chassis of Strenx® steel stacked on top of each other

Detalle del caso

País Estados Unidos
Empresa Dionbilt Manufacturing, LLC
Sector Fabricantes de trailers y carrocerías
Programa de marca My Inner Strenx®

“When a potential customer doesn’t want to buy a chassis without this sign, then you know the program is working. It makes me happy that Dionbilt is being recognized by our customers for our frames that are My Inner Strenx® certified.”

Branden Dion, owner of Dionbilt

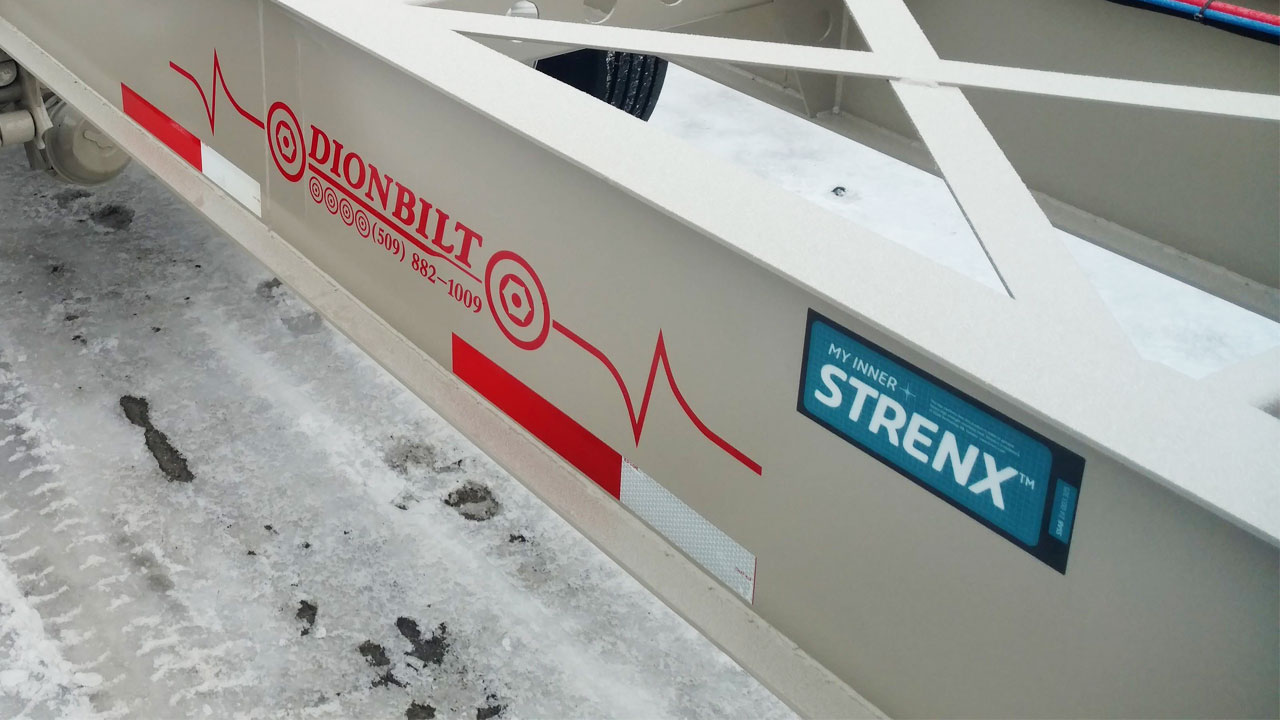

Close-up photo of a white trailer chassis beam with My Inner Strenx sign

Dedication to high quality certified by My Inner Strenx®

Dionbilt demonstrates commitment to high quality in trailer design and has been a member of My Inner Strenx® – SSAB’s quality program for selected OEMs – since 2016. Each of Dinobilt’s certified trailers features the My Inner Strenx® sign of quality that customers can trace as proof of their performance.

Strenx® 100 speeds through the workshop

Dionbilt is a long-time user of SSAB’s high-strength structural steel grades. “There is a great difference compared with the T-1 (A514) material we used before,” says Dion. “We’re impressed by the steel’s consistency, flatness and surface quality. Bending Strenx® is so much easier than with T-1. It behaves the same for every bend. T-1 varies a lot and needs more setup and checking to get the bends right. Naturally, the change to Strenx® has saved a lot of time.”

Strenx® makes for smooth, good-looking trailers

The flat, clean and smooth surface of Strenx® in its natural state improves welding speeds and allows welders to more easily complete passes. The common issue of welding spatter is minimized. Spatter is the sparks of tiny pieces of molten metal that fly from the weld and land on all surrounding surfaces. The spatter needs to be removed post-weld to get a clean steel surface.

With Strenx®, Dionbilt can weld without using anti-spatter spray, saving time both before welding and after when preparing the parts for painting. The smoother the surface, the better the paint job. A trailer with a flat and glossy appearance is a sign of quality and it stays clean much longer, while a rougher surface picks up more dirt from the roads.

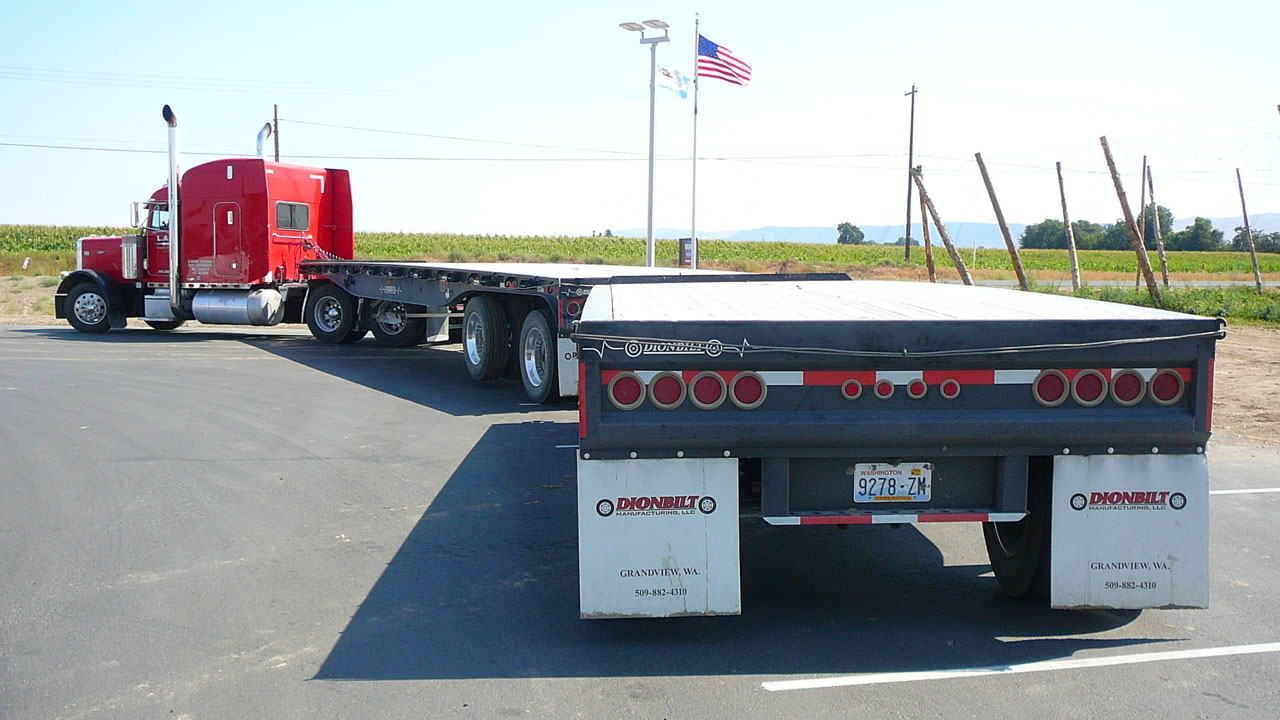

View from the rear of a trailer combination made by Dionbilt

Customer benefits in short

- 200 kg (400 lb) lighter trailer

- Higher strength makes for thinner beams

- Predictable bending properties

- Faster production time

- My Inner Strenx® supports sales

Strenx® performance steel

El acero de altas prestaciones Strenx® puede hacer que sus productos sean más resistentes, ligeros, seguros, competitivos y sostenibles. Lo llamamos acero de altas prestaciones porque proporciona un rendimiento adicional en comparación con el acero estructural convencional.

Descubra qué puede suponer la actualización a Strenx® para sus productos y para su empresa.
