Customer case

Less steel – more coal

July 04, 2019 6 min read

""

Case details

Industry Trailers and body builders

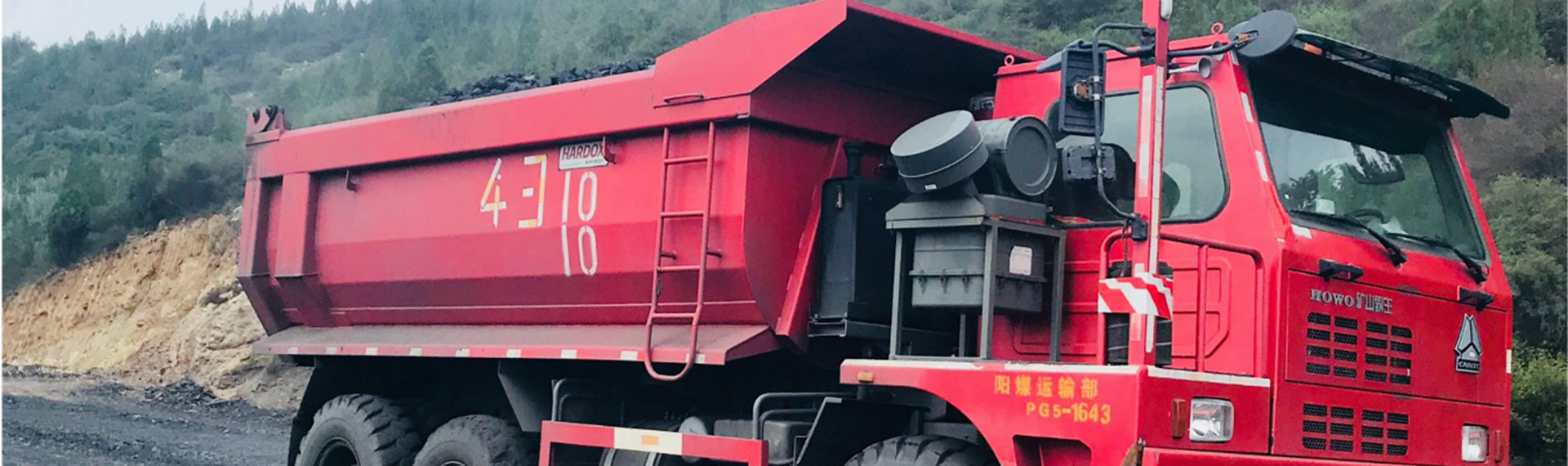

This truck is operating in a mountain environment, with steep incline. This makes saving weight even more important. The new tipper body design is made of Hardox® 450, increasing the heavy duty tipper’s load capacity by about 8% compared to similar solutions of standard design. In addition to this, the life-time of the body is doubled from 5 years to 10 years.

Case details

Industry Trailers and body builders

SSAB EcoUpgraded

Together with our customers, SSAB continually upgrades steel and equipment designs. SSAB EcoUpgraded saves CO2 both in steel production and during the full lifetime of the machine.

From the CO2 payback time and onwards, every extra hour brings additional savings.

EcoUpgraded logo

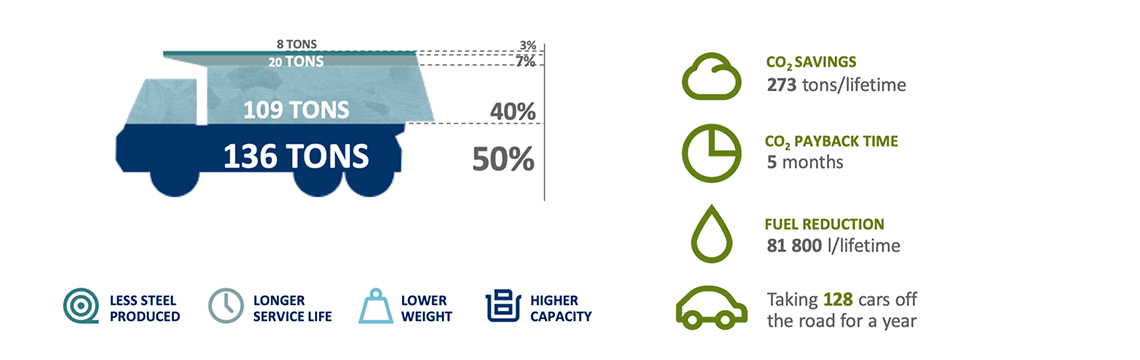

Savings on CO₂

EcoUpgraded Heavy duty tipper
  Calculation data
Fuel consumption, fully loaded 350 litres/100 km
Fuel consumption,without load 90 litres/100 km
Machine usage per year 35 000 km/year
Distance with maximum load 50 %
Service lifetime 10 years
Maximum payload (before upgrading) 50 000 kg
Gross weight (fully loaded) 70 000 kg
Weight of original parts 10 000 kg
Weight of upgraded parts 6 000 kg
Wear resistance steel saved during lifetime 10 000 kg
