Lattice-boom cranes

Need to build a lattice-boom crane that has to lift higher and heavier? Leverage our range of high-strength plate, tubes and hollow sections for better strength to weight performance in lattice booms, jibs and frames.

Get free technical advice

Lift higher and heavier

Changes in industry are challenging the abilities of heavy machinery like lattice-boom crawler cranes to adapt. These cranes are indispensable in major construction, maintenance and energy projects, where they can be used to install and take down wind turbines. Bigger machines that allow for more clearance for the boom or jib are becoming more common.

Lattice-boom cranes weighing 3,600 tons, with integrated extra counterweight vehicles, are machines with some of the longest reach and highest lifting capacity around. Ideal components for using Strenx® include the chassis, boom, tension straps, slewing ring and turntable. By using less steel yet with a higher yield strength, you can build lighter structures and leave room for greater lifting capacity, longer reach or a combination of both. It’s up to the designer.

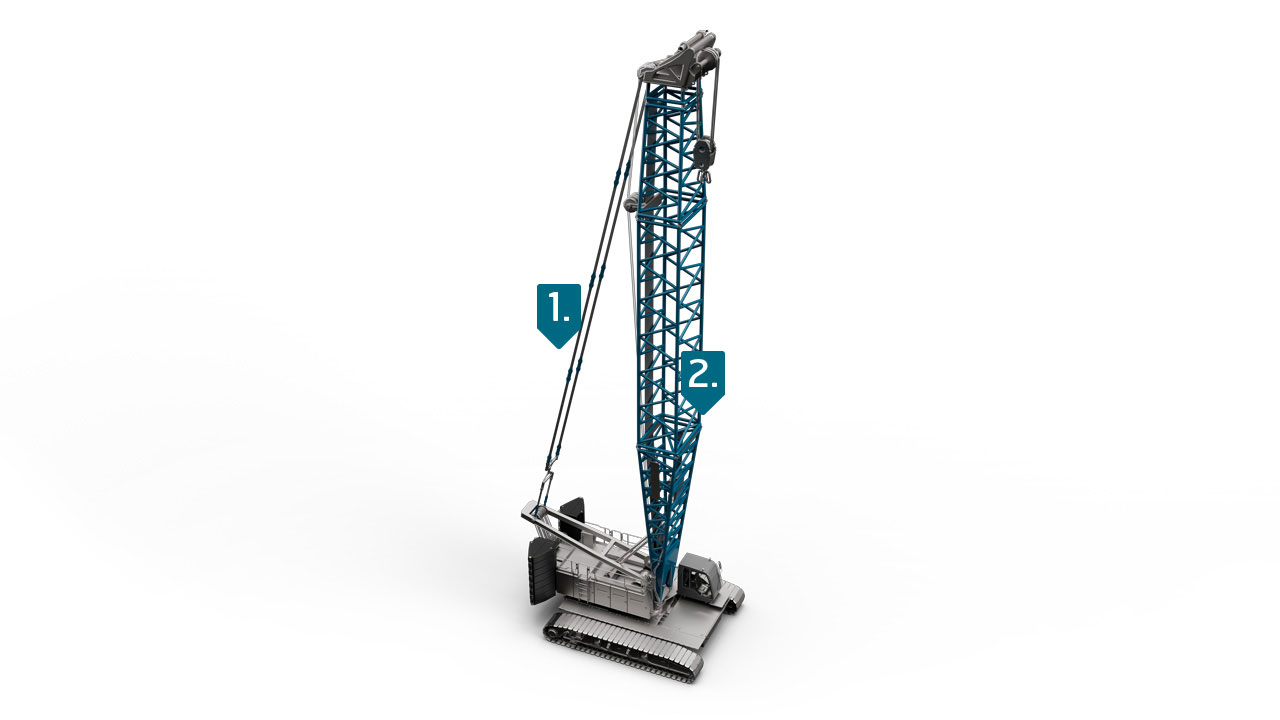

No 1  Strenx® 9601100 and 1300 High-strength steels

no 2  Strenx® Tube 700MLH, Strenx® Tube 960QLH High-strength steel tubes

pdf 111 Kb
Strenx® products for Lattice-boom cranes
Lattice boom cranes

Whatever your application, wherever you are in the world, SSAB supports your business

Design and development support

Our local support teams conduct customer visits, seminars and development projects. Together, we help you develop products that are stronger, lighter and deliver more value.

Ways we support you:

  • Material selection for your specific product
  • Conceptual design and innovations
  • Design recommendations for high-strength steels
  • Production efficiency recommendations
  • Expert advice and best-practice guidance

Aerial work platform

Workshop fabrication support

Get the help of our experts to ensure a smooth production process and gain more value from your products.

Ways we support you:

  • Welding recommendations
  • Forming recommendations
  • Tooling advice
  • Trial material
  • Advice on new production techniques

Customer cases

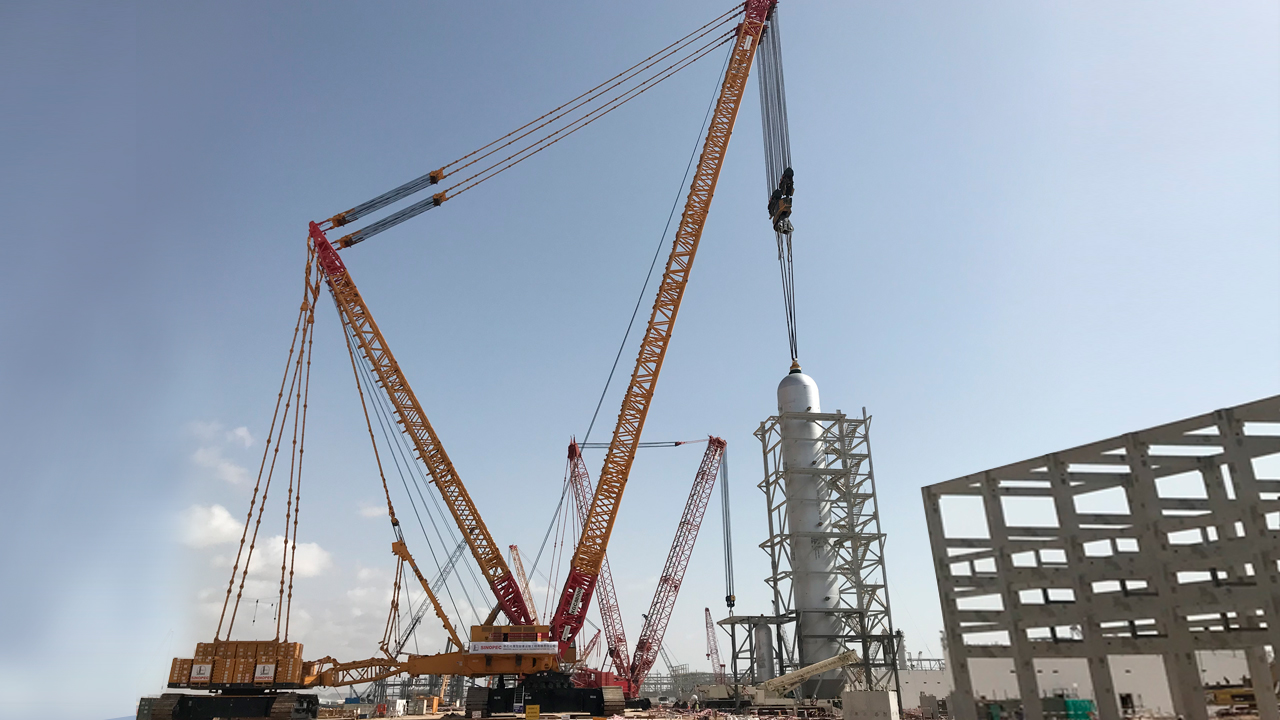

Strenx® performance steel has the right strength for world’s No.1 4,000-ton crawler crane

Tension bars in Strenx® 1100 E make a safe choice in XCMG’s record-breaking 4,000-ton crawler cranes.

XCMG Crawler crane

Discover the power of Strenx® for lattice boom crawler cranes

pdf 1.58 Mb
The beauty of Strenx® - stronger and lighter
pdf 565 Kb
My Inner Strenx® - a membership program for optimizing design and production
pdf 728 Kb
Welding of Strenx®
pdf 1.79 Mb
Machining recommendations for Strenx®

Download brochures

Time for an upgrade? Get more information here.

View all lifting equipment types

Check out how you can use Strenx® in other equipment.
