กรณีศึกษาของลูกค้า
รถดัมพ์ใหม่ของสำหรับ Zetterbergs ที่มีน้ำหนักลดลง 20% และใช้งานนานขึ้นถึง 40% โดยใช้ Hardox® 500 Tuf
พฤศจิกายน 01, 2023 6 min read

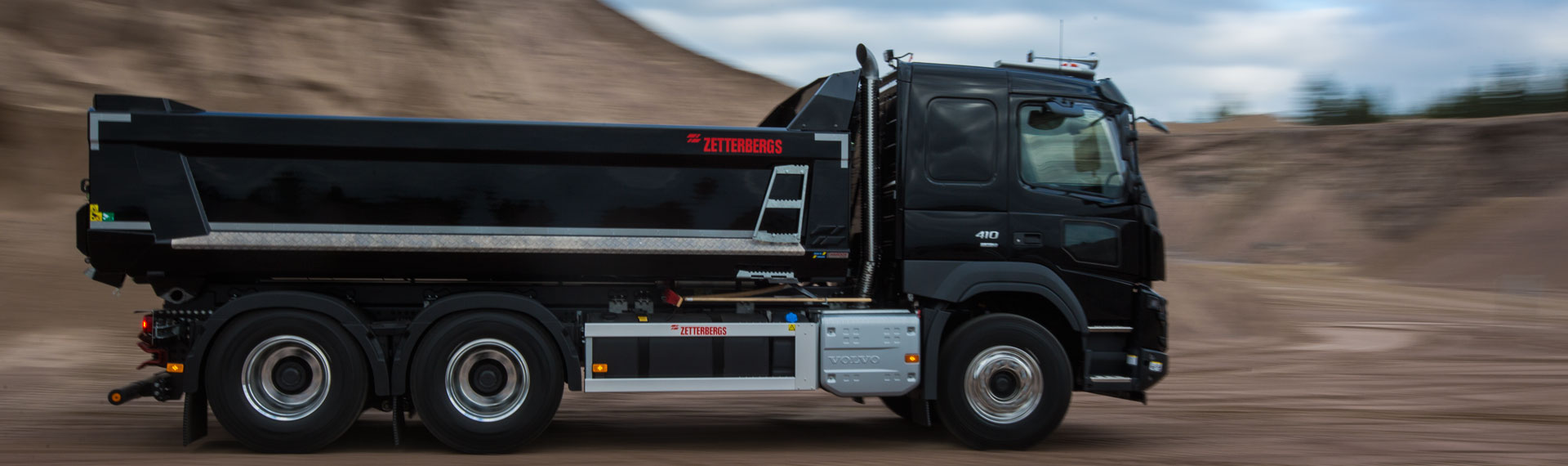

![รถบรรทุกดัมพ์ทำจาก Hardox 500 Tuf ที่มีการออกแบบแผงด้านข้างทรงกรวย](/-/media/images/hardox/customer-cases/zetterbergs/1920x570_zetterbergs-top-image.jpg?m=20201015131016)
รายละเอียดกรณี
Zetterbergs พัฒนา ผลิตและทําการตลาดตัวถังรถดัมพ์ รถบรรทุกดัมพ์ รถพ่วงดัมพ์ โครงสร้างส่วนบนของรถเก็บขยะและรถแฟลตเบดแบบสลับ บริษัทก่อตั้งขึ้นในประเทศสวีเดนเมื่อปี 1923 ความคิดที่ทรงพลัง การคิดอย่างมีคุณภาพและการทํางานหนักได้เปลี่ยน Zetterbergs เป็นบริษัทชั้นนําในสาขานี้
The latest lightest dumper, offering 650 kg(1,433 lbs.) more payload thanks to Hardox® 500 Tuf
The ZD4 is a fourth-generation dump truck from Zetterbergs with a tipper truck body manufactured using Hardox® 500 Tuf. This new material has allowed for a 20%, or 650 kg (1,433 lb.), reduction in tare weight. The ZD4 features a new, streamlined design in which the base, sides and front wall form a single functional unit for extra high performance.
Robert Löfstedt, marketing manager at Zetterbergs, explains what’s different about Hardox® 500 Tuf. “It’s a hard-wearing material with high load capacity, enabling our customers to transport a bigger load each time. A haulier’s profit depends on how much they can transport. In this way, revenue increases while tipper trucks’ fuel costs go down,” he says.

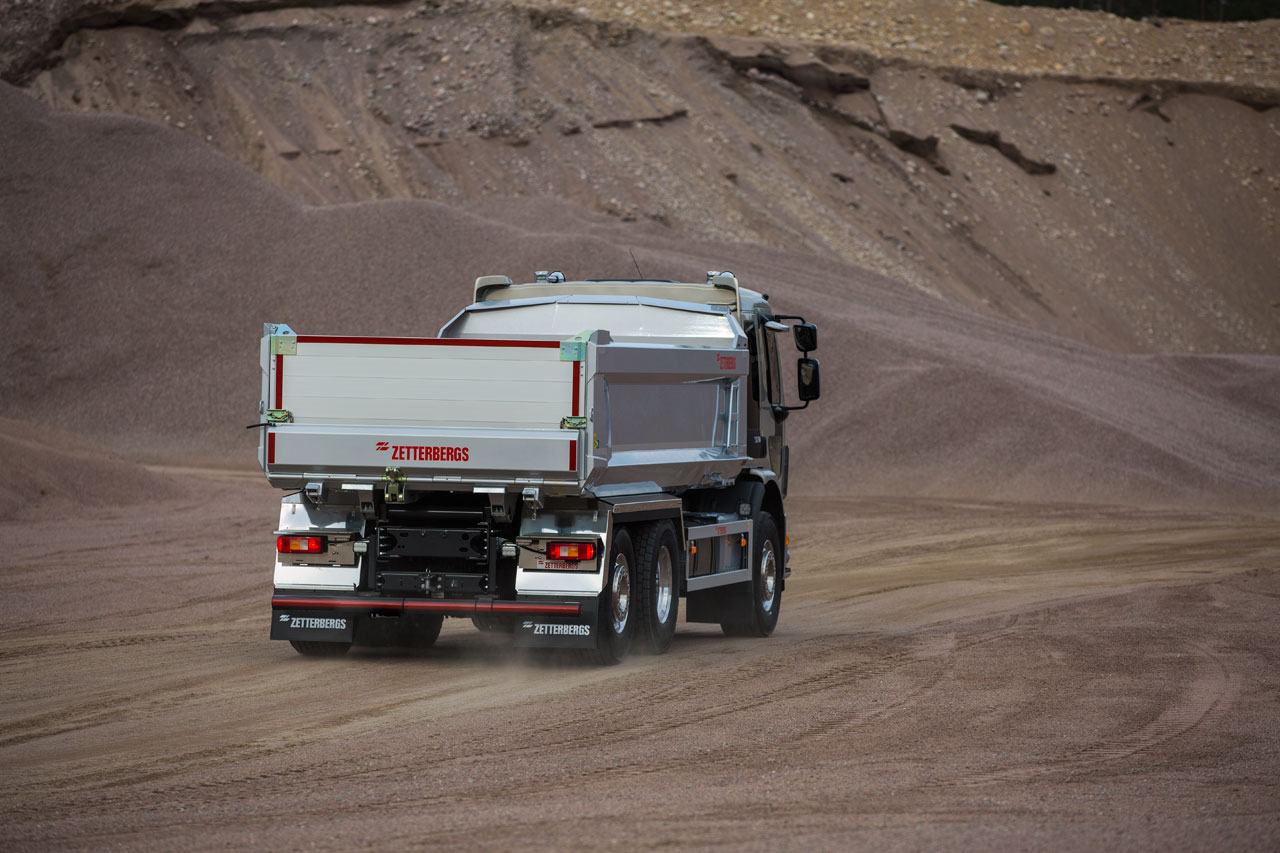

![รถบรรทุกดัมพ์ที่ทำจาก Hardox® 500 Tuf พร้อมการออกแบบแผงด้านข้างทรงกรวย](/-/media/images/hardox/customer-cases/zetterbergs/1280x853_zetterbergs2.jpg?m=20201028091538)
Zetterberg’s ZD4 dump truck body with a 6 mm (0.24") bottom plate of Hardox 500 Tuf can hold 650 kg (1433 lbs.) more payload than the previous model with a 7 mm (0.28") bottom plate, with the same or better service life.
